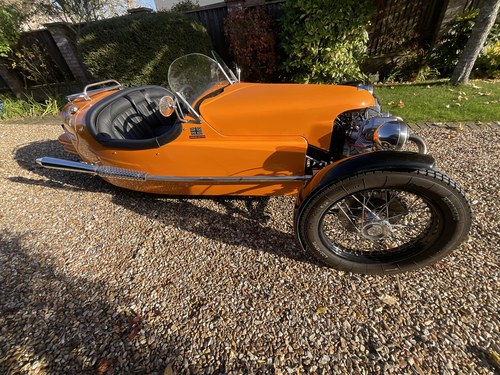

2022 Triking Cyclecar Sports

TRIKING TYPE 3   ORANGE EDITION          14/ 7/ 2023


SPECIFICATION FOR BUILD OF 2023 TRIKING TYPE 3 BEETLE BACK SPECIAL.


This Triking is a factory build of a Triking T3 which was built as a limited edition show Car . Build date was late 2022 and being finished to be roadworthy in late spring of 2023.
It is fitted with an 1100 cc EFI Moto Guzzi engine/ gearbox and the Nova racing inline reverse box . Engine was was completely stripped and rebuilt as “zero timed” in accordance with the OE manufacturers specifications and to comply with all DVLA and VOSA [DVSA] requirements [all worksheets available ] . The vehicle has now covered circa 350 miles shakedown testing and had its first service and nut / bolt check to chassis etc .
All parts used on the vehicle [except the donor engine unit] are new OE factory or factory approved parts from OE suppliers as opposed to donor vehicle parts which constituted it as fit for supply of a new registration mark instead of an age related plate with DVLA .

Specification of build parts included are ,
Type 3 reverse chassis powder coated in Jet Black
Type 3 body work with factory ‘Beetle back ‘ and light pods fitted with Lucas type rear lighting .
Porsche 911 [1960s] Signal Orange paintwork with Jet Black cycle guards .[ ICI 2K PAINT]
Powder coated Black front wheel rims with Stainless spokes and alloy polished hubs/ caps . Front tyres are Heidenhau K28 Scouts . [ filled with OKO puncture repellant ]
Bespoke Triking wiring loom for vehicle, instrumentation and ECU management systems .
15” Triking modular rear Wheel fitted with 15’ x155 Toyo car tyre [filled with OKO puncture repellant] and Wilwood lightweight hydra mechanical caliper to operate foot pedal and handbrake .
Hagon Nitro {Gas/ Air] fully adjustable shock absorbers to front and rear suspension .
Triking Sportscars high performance sports suspension option fitted to front .  ie [wishbones , uprights, extended steering rack ].
Brembo 4 pot brake calipers and bespoke floating discs , stainless braided flexi piping .
Muirhead Grampian leather trim in Black with side hip recesses . [extra width in cockpit]
Fully adjustable shoulder/ lap strap safety harnesses x 2 .
Bespoke Triking instrument pack [Black dials with White numerals and pointers]
Aircraft grade alloy dash panel with engine turned finish, lockable glove box , Billet hand turned Alloy toggle switch covers and Gear levers . 12 volt aux. socket hidden under dash panel.
Acoustic rubber floor matting throughout. Soundproofing membrane within centre tunnel area.
Aerosport touring, sports windscreens . [ rounded tops ] . Triking stainless 3 pc. Mirror set .
Stainless headlamps and quality DRL / driving lamps [very bright] fitted to front rail .
Bespoke Triking luggage rack fitted to rear body section .
Full Everflex cockpit Tonneau cover in Black . [ designed to cover passenger side only if req.]
Stainless exhaust system with Keihan {Peashooter style ] silencers , Stainless side heat shields , Billet alloy turned Exhaust roses to header pipes .
Removable round section front chassis rail in polished alloy [ factory option ] fitted as DRL[Day running lamps] rail.
Fully adjustable pedal box with adjustable front/ rear brake bias bar system .
Absorbed Glass mat 30 ah zero maintenance Battery fitted . Battery master kill switch .
Monza type fuel filler cap finished in brush Alloy .
Stainless steel nuts, bolts , fasteners throughout [ except safety critical parts ]
Triking bespoke engine breather / Oil separator fitted to engine [polished stainless steel ]
Bespoke ECU mapping to Triking Sportscars Ltd specification . [to give excellent torque spread and rapid acceleration when req].
Polished Alloy Rocker boxes , timing cover , Alternator cover to engine . K and N performance Air filters .
Dashboard bottom Cope moulding [safety rail ] Leather covered .
LED torpedo type front indicators .
Orange edition / Union Jack side decals [bespoke design ] .
Pictures and detailed information on request . 


POA.
