British Racing Green ex Race Car fully road legal, MOT and Tax exempt. The car has a full race MGB 5 Bearing 1932cc engine running on a Weber 45 DCOE Carburettor. Fitted with 5 speed close ratio gearbox with short shift and limited slip differential. Realm Engineering 15” Dunlop Alloy wheels 185/ 65R tyres.
The front suspension has negative camber, Spax telescopic shocks and lowered road springs, heavy anti-roll bar with competition Brake discs and pads and stainless steel hoses with brake cooling ducts and V8 wishbone bushes. Anti-tramp radius arms rose jointed, Watts linkage, Spax shocks and solid bushes, Vented rear brake drums with competition shoes, six gallon Fuel Tank, Facet fuel pump with internal boot filler.
The engine is fitted with a stainless steel big bore exhaust system with tubular competition manifold. Full Roll cage and head support mounted to chassis, 13 row oil cooler fully ducted. Purpose made full Sebring front valance with oil cooler and brake ducts.
The engine is cooled by an MGB wide core radiator fully ducted from grille and is fitted with an extra 1 gallon header tank made from stainless steel which incorporates and extra water cooler taken from where the heater draw off is found. The whole car weighs around 762KG.
The front and rear wings are lightweight hand built Aluminium, as are the bonnet, boot & doors. All boot panels are also alloy and a fire wall has been incorporated between the boot and cockpit. Cockpit is fitted with 2 race seats and Full FIA approved Race harnesses, 2 aero screens and 3 mirrors. Full Toneau cover.

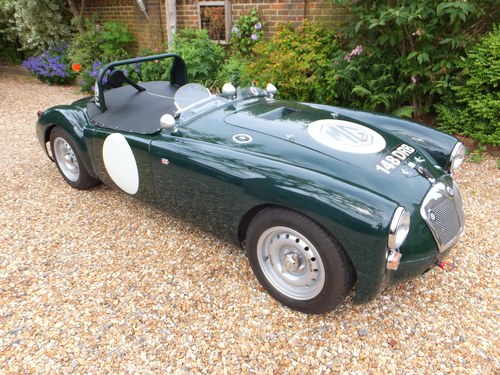

The car is painted in a very nice shade of British Racing Green with white Roundels on the bonnet and doors.
MGA DETAILED ENGINE SPECIFICATION
Big valve square port cylinder head, Strong casting, Fully Flowed, Hydural guides, Spacer’s on rocker shafts and support pedestals on ends, Extra strong valve springs. The cylinder head was recently overhauled and rebuilt by OSELLI and converted to run on un-leaded fuel.
1800cc 18V “B” Series Engine with 5 bearing crankshaft and MGB block bored to 1932cc with +030 “Lotus Twincam 1600” flat top pistons machined down in height to suit bore and stroke.
Modified oil pump to ST Leyland spec, Modified skew gear for pump drive, Piper equivalent to B770 Full Race (Rally) Camshaft, Believe 321 Spec Copper ‘S’ tappets. Block modified on waterways and matching head, Modified larger studs. Torque bar on outside of cylinder head, Double core plus, Baffled sump, Fully lightened and balanced Rods, Pistons, Crank assembly. Solid centre clutch with competition linings, Lightweight back plate, Lightweight Cam & Crank Sprockets, Modified Flywheel, Modified electronic Distributor plugs & leads, Extra oil breathers with oil catch tank.
Engine Approx 140+ BHP running on Weber 45 DCOE Carburettor, Competition flowed Manifold and twin cable linkage. One gallon stainless steel Header tank plus water cooler situated behind oil cooler piped into cylinder head where the heater tap would normally be. Large capacity water pump, Competition Flow ring in thermostat position. Gearbox, Modified 5 Speed Ford type 9 Cosworth close ratio gearbox with short shift gear stick. Gearbox driving to Limited slip differential with 3. 9/ 1 diff ratio.
The engine was built by Derek Baker of former MG tuning Specialist in Southampton “BHB Engineering”. Now retired.
If you need to know about anything in more detail you can contact Jon Tyrrell on the details below. Serious enquiries only please. Otherwise available to view in Gosport Hampshire UK.
This is a very quick car and is a home on the track. The handling is excellent and perfectly balance. Since in my ownership it has been slightly de-tuned to make it more comfortable for road usage. The car has been cherished for the last 22 years by its current owner and prior to that, owned and rebuilt in 1980, then raced by Derek Baker of BHB Engineering for 12 years between 1980 to 1992, wining three overall MGA championships and with many other wins to its credit. Retired from racing from 1992 and used by Derek for the occasional run out until sold on 10th July 2001 when purchased by its current owner.
Only selling due to other commitments and not really having time to enjoy driving this great piece of classic MG Engineering. I have really enjoyed owning and driving this car to many events including Le Mans & Le Mans Classic on many occasions over the last 22 years. Always been garaged in it’s own heated workshop.
