Description

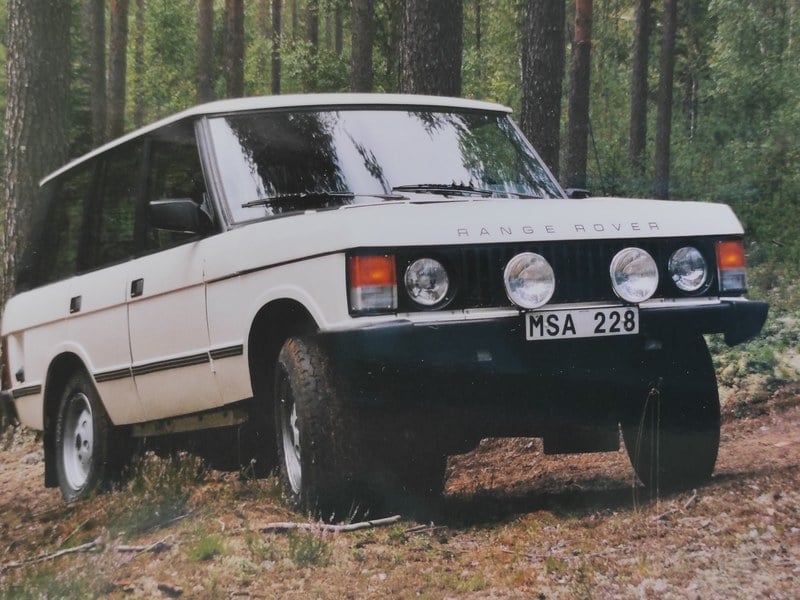

Range Rover Vogue EFi (Classic) model year 1986
Chassis number (VIN) SALLHAML8CA164472
Current odometer 151, 206 km.
The first owner purchased the vehicle 1986-07-24 in Sweden.
The current (second) owner bought it 1997-12-04 at 128, 894 km.
Specs.:
V8 3, 5 l petrol with electronic fuel Injection (EFi), compression ratio: 9. 35:1 | Engine Serial No: 24D00728A.
LT77, 5-speed manual transmission serial No: 53A0126472D.
LT230T transfer case, 1. 192 ratio serial No: the details belowB
Approved at vehicle inspection (Svensk Bilprovning) 2026-05-19.
Registered as a light truck with allowance of three persons in the back seat.
Tyres: Pirelli Scorpion ATR LT 225/ 75 R16.
Braking System: Extensively overhauled with copper brake pipes.
Constant velocity (CV) joints were inspected and serviced in May 2026.
The vehicle was subjected to a bare-chassis, frame-off restoration carried out from 1998 to 2001. The car has only been driven on summer roads and no serious off-road driving has been performed, just driving on gravel roads. On the road, the vehicle tracks true and the steering remains perfectly steady.
Still some parts were left over in this overhaul as the main instrument binnacle where the original tachometer was and still is non-operational, likewise the factory coolant temperature gauge in the dash is out of order. Instead an auxiliary instrument is used to monitor the coolant temperature, which is around 85-87 C during driving.
The auxiliary cold start injector has been intentionally bypassed/ disabled.
The driver-side electrically-operated exterior rear-view mirror (left) is currently non-functioning.
Minor localized paint blistering is visible on the front edge of the bonnet, at the lower door sections on the passenger side, and some oxidation/ rust is present at the upper edge of the rear lower tailgate door. As the owner of this vehicle for 28 years I have decided to sell it due to lack of space for my other cars. A restoration work by myself was carried out from 1998 to 2001. The chassis was fully galvanized, and all mechanical assemblies were fully overhauled.
Detailed Component Breakdown
Engine Rebuild: Complete disassembly down to bare block; all components steam-cleaned. Fitted with full engine gasket set including upgraded composite cylinder head gaskets. New main bearing set, big-end bearing set, and piston ring set installed. Secured with a heavy-duty main bearing stud kit. Upgraded with a Piper 270/ 110 high-performance camshaft and Duplex timing chain configuration. Fitted with a new lifter and tappet set, brand-new oil pump base plate, fresh heater inlet/ outlet hoses, and a new radiator core. Ignition system completely modernized with a new electronic distributor, high-output ignition coil, and amplifier module.
Gearbox & Transfer Box Overhaul performed by an external expert: Change of the fifth gear, FRC5305, on the main LT77 manual transmission. For the LT230T transfer case, an upgraded 26T input gear (FRC5428) featuring integrated cross-drilled oil feed holes was installed alongside a full matching overhaul kit to prevent spline wear issues.
Chassis & Body Enhancements:
Body completely stripped and separated from the frame; the rolling chassis was comprehensively hot-dip galvanized in 1998 to ensure permanent corrosion protection. Suspended via an Rpi Engineering 1. 5-inch raised performance spring set paired with high-end Ironman 4x4 Nitro Gas shock absorbers and a full polyurethane bushing kit (Polybushes from Rpi). Exhales via a premium Rimmer Bros stainless steel sport exhaust system. The upper rear tailgate was replaced with a brand-new unit, and a complete new clutch assembly was fitted during reassembly.
