Description

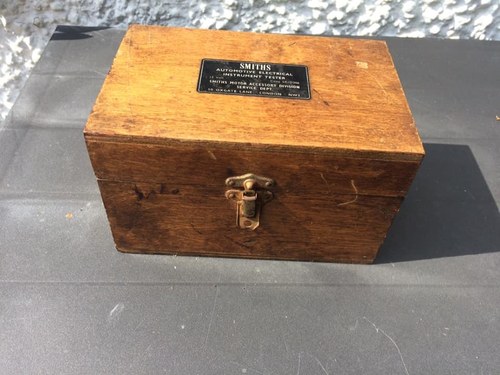

Vintage Smiths Automotive Instrument Tester which belonged to my late father
It is in good condition and dates from around 1965
These were low production instruments and this one is build number 92 (hand written inside the case)
Perfect for diagnosing faults on your Classic or Vintage car gauges and instruments and a nice talking point in your garage
In good working order and will be supplied with a 41 page PDF of the original instruction booklet
I've found the following information online:-
The SR/ D366’s basic test functions are for fuel and temperature gauges but as part of that, and before the checks are carried out, it can also be used to assess battery voltage and voltage stabiliser operation. It’s designed to work with the most common types of gauges manufactured by Smiths, and other companies. According to the instruction label inside the lid these include fuel gauges that use ‘Bi-metal’ or ‘Segment’ senders, and temperature gauges with ‘Thermal Segment’, ‘Semiconductor’ and ‘Bi-Metal’ sensors. The instruments under test are identified by code prefixes, and these are selected using the rotary switch on the right side of the top panel. The tester connects to the instrument or wiring using a pair of leads, terminated in crocodile clips. The operation of the instrument is then shown on the small meter, which appears to be based on the distinctive ‘quadrant’ family of gauges made by Smiths and fitted to many British cars built in 60s.
Under the bonnet, as it were, it is really simple and not too dissimilar to a regular multimeter. The circuit consists of a meter connected, via the selector switch, to a bank of 15 precision wire wound resistors. The instruction sheet is very easy to follow with advice on how to tell if the problem lies with the instrument under test, the wiring or the car’s voltage stabiliser. This is a really well made piece of kit, from Smiths Motor Accessory Division’s Service Department, located at 50 Oxgate Lane in London. It is housed in a smart little plywood box that is quite capable of standing up to the sort of rough treatment it would be expected to receive in a typical garage workshop L
