Beschrijving

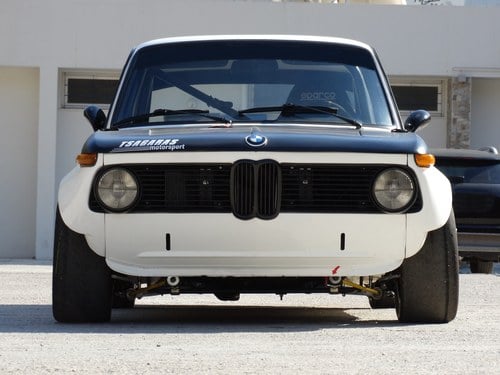

In BMW tradition, the 02 series was introduced in 1966 as a sporting 2-door version of its New Class sedans. The shorter wheelbase permitted for agility and performance driven by its M10 in line 4-cylinder 1. 6lt engine. Soon after BMW executives felt the 85 bhp power output was not fully exploiting the potential of the chassis and proceeded with numerous revisions that included dual carburation (1600Ti/ 105 bhp), capacity enlargement (2002/ 105 bhp, 2002Ti/ 120 bhp), injection fuel delivery (2002Tii/ 130bhp) and turbocharging (2002 Turbo/ 170 bhp). In motorsports the 02 series became a Nurburgring 24hr and Trans Am Series winner while on public roads it became infamous as a police out-runner.
The 02 offered was sourced in 2011 as a road legal 1602 and became the basis of a series of competition modifications to render a formidable hillclimb performer. Its chassis was strengthen while its weight reduced down to 910 kg via plexiglass lids, widebody polyester kit and polycarbonate glass. An M10 2lt engine was prepared by Greece’s competition experts Tsagaras Motorsports to naturally aspirated 200 bhp performance via a 5sp ZF gearbox and a ZF LSD. The vehicle was certified in 2012 and tested in 2013 to remain an exceptional hillclimb championship performer for the years that followed. It is now offered fully serviced and prepared for any hillclimb or track event.
Specifications
Year: 1970
Make: BMW
Model: 2002 Ti
Type: 2dr coupe
FIA Homologation: 5331
Class: HIST2 1975 2/ C3
Group: 2
Chassis number: 3914499
Body type: Reinforced lightweight shell, fiberglass Group 2 widebody kit, fiberglass engine and trunk lids, plastic door trim
Glass: Polycarbonate side and rear glasses, laminated safety windshield
Roll cage: 6-point, Sassa Engineering & Racing N909/ 11, FIA-compliant and Hellenic Motorsport Federation-registered
Engine number: 2718208
Engine preparation: Tsagaras Motorsport Competition Engines, Athens, Greece
Engine type: 1991cc, in line 4 cyl., SOHC, linered block, forged pistons, forged connecting rods, steel lightweight crankshaft, flow bench ported valves, racing camshaft, 2 Weber 48 DCO 2SP carburetors with works-type throttle links, 200 bhp output
Fuel supply: 2 Facet Red Top Gold Flo fuel pumps fitted in the trunk with pressure regulator and alloy auxiliary canister
Engine lubrication: JE Pistons oil cooler and catcher, high pressure lines
Exhaust: Handmade racing manifold, rear section muffler, stainless steel throughout
Gearbox type: ZF, 5-speed, 2. 33 to 1. 00, straight cut, custom gear lever
Differential type: ZF, limited slip, 25% with 4. 75 crown pin
Brakes: ATE 4-pot calipers over vented discs at the front, ATE 2-pot calipers over solid discs at the rear, Wilwood hydraulic-powered hanbrake with adjustable brake bias
Pedals: lightweight alloy brake, clutch pedals and footrest
Suspension: Bilstein coil over shock absorbers at the front, standard Bistein shocks at the rear, Ireland Engineering 2 anti roll and sway bars, teflon bushings front and rear
Steering: ZF steering box mod. the details below, Sabelt steering wheel
Wheels: Revolution 5-spoke 4-stud, 8x15 front, 9x15 rear
Tyres: AVON slick 10. 0/ 21. 5-15
Seat: Pro 2000 QRT ultralight fiberglass non-slip divisible by Sparco, FIA 8855-1999 standard
Seat belts: 6-point FIA-approved harness by TRS Motorsport
Electrics: Sparco safety electric cut off and fire extiguisher exterior switches, OMEX electronic rev. limiter, Bosch ignition coil, Bosch distributor, Beru leads, electric button engine starter, general cut off switch, air to fuel on board gauge, electric fuel and radiator fan switchboard
Net weight: 910 kg
Power to weight: 22% or 222 bhp per ton
Settings: Tarmac
Current registration: Federation Internationale des Vehicules Anciens (FIVA) of Greece
Former registration: Passenger vehicle permit, SORN, Greece
Documents:
- Technical Passport - Log Book, Hellenic Motorsport Federation / Racing Commitee (O. M. A. E./ E. P. A), issued 2015
- Greek FIA historic certificate, issued 2012
- Greek passenger vehicle registration, issued 1973
Racing History:
2013
March: Ritsona hillclimb, 3rd
2014
March: Ritsona hillclimb, 7th
May: Kimis hillclimb, 3rd (youtu. be/ gAxrfqcUyFA)
July: Achladokampos hillclimb, 2nd
September: Omalos hillclimb, 2nd
October: Dervenochoria hillclimb, 2nd
2015
March: Ritsona hillclimb, 3rd (youtu. be/ 8UcUCaoA5PY)
May: Kimis hillclimb, 3rd (youtu. be/ 3Lu1ZfV-quE)
June: Achladokampos hillclimb, 2nd
August: Omalos hillclimb, 5th (youtu. be/ q16v4KDJ6Hg)
October: Attiki Dervenochoria hillclimb, 2nd (youtu. be/ x9rcbog7NBI)
2016
March: Ritsona hillclimb, 3rd
April: Dionysos hillclimb, 3rd
May: Kimis hillclimb, 1st
June: Achladokampos hillclimb, 1st (youtu. be/ HZjyO4RRzGM)
2018
March: Dionysos hillclimb, 3rd
April: Ritsona hillclimb, 3th
May: Kimi hillclimb, 4th
June: Achladokampos hillclimb, 4th
November: Pititsa hillclimb, 1st (youtu. be/ m31dfSQ0npo)
