Description

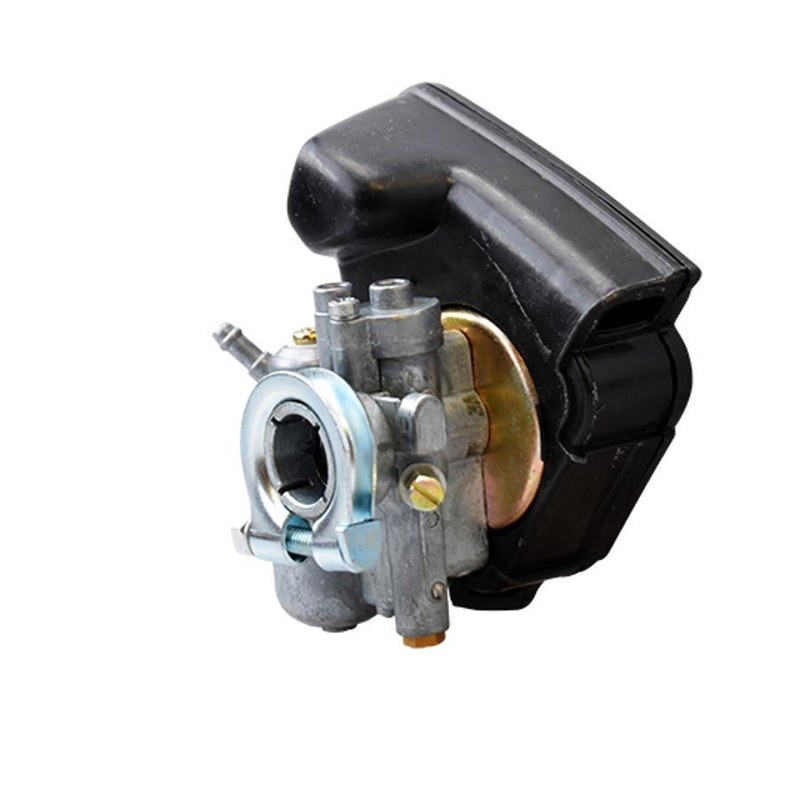

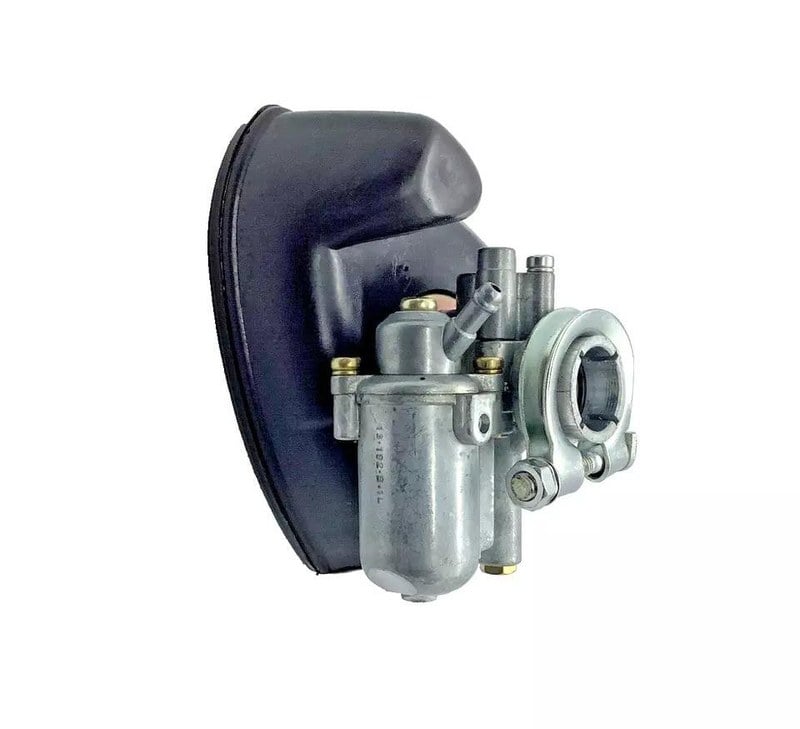

The adaptable Gurtner AR1-13 type carburettor is a specific model designed primarily for mopeds such as the MBK 51.
MOPED - PARTS | Parts and accessories for Peugeot 103, Solex, Ciao, MBK, Motobécane, Mobylette, 50cc and classic motorcycles.
Here are its technical specifications and details:
Technical specifications of the Gurtner AR1-13 type carburettor:
Carburettor diameter:
Ø 13 mm (internal diameter of the inlet manifold, external diameter 19 mm).
Air intake:
Designed for an air box supplied with the carburettor with a width of 100 mm.
Possibility of adding an adaptable filter for a different configuration.
Slide type:
Round slide, classic to Gurtner carburettors.
Fuel inlet:
Standard connector with fitting for 6 mm hose.
Material:
Body in lightweight aluminium resistant to corrosion.
Maintenance and adjustment of the AR1-13:
Cleaning:
Regular removal and cleaning of the float bowl and jet with carburettor cleaner.
Checking the passages to prevent any blockage.
Important adjustment:
Idle speed: Adjust the idle screw for stable operation at neutral.
Compatibility:
Specifically designed for the original AV10 engines of MBK 51s.
Advantages of the Gurtner AR1-13 type carburettor:
Simplicity: Designed for reliable operation and easy maintenance.
Perfect compatibility: Optimised for MBK 51s in original configuration.
Fuel economy: Ideal for daily use.
Compatible models:
Here is a list of the main versions of the MBK 51:
MBK 51 Club
MBK 51 Super
MBK 51 Evasion
MBK 51 Magnum
MBK 51 Magnum Racing
MBK 51 Rock
MBK 51 Cross
MBK 51 Black Edition
MBK 51 West and New-West
MBK 51 RS
