BAC MONO "R" - 1 OF ONLY 3 UK REGISTERED CARS. 2022/72 For Sale

  • Right Hand Drive
  • Automatic
  • Petrol
  • 2488cc
  • 2022
  • R40MNO
  • Black
  • Dealer
  • GB
    Shrewsbury, England, United Kingdom

Description

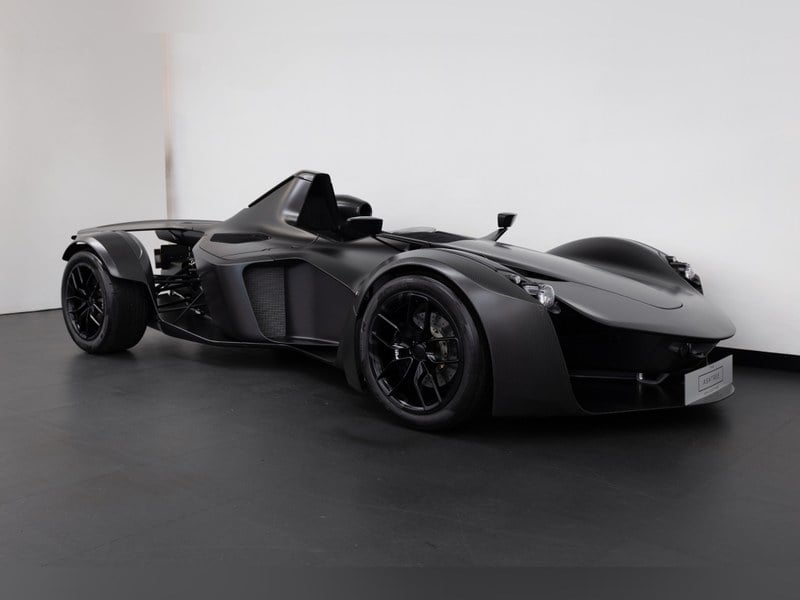

We proudly present this incredible BAC Mono "R" finished in Gloss Black paintwork with full Matt PPF (paint protection film) and Black Alcantara/ Leather trim.

Its very rare to see a Mono "R" for sale in the UK, due to the fact the are only 3 UK registered cars.

Supplied with the following factory optional extra specification :-

Carbon Fibre Steering wheel £3995
Carbon Fibre Interior panels £2595
Carbon Hybrid Wheels in black £11950
4 x Spare OZ 17" alloys wheels for track £1980
Cockpit Storm Cover £845
Indoor car cover £1095
Tracker £945
Full PPF (paint protection film) in Matt.
Made to measure seat £6495

The BAC Mono R is a higher-performance, lighter, and more advanced version of the iconic single-seater supercar from Briggs Automotive Company (BAC). It was launched as a limited production run of only 30 units, all of which sold out prior to its official debut at the 2019 Goodwood Festival of Speed. A further 10 units were produced due to demand, so 40 Mono R's were produced in total.

Performance and EngineeringThe Mono R was designed to be the "New Reference" for driving machines, featuring several industry firsts and record-breaking specifications.

Power-to-Weight Ratio: It delivers a remarkable 613 bhp per tonne, weighing just 555 kg.

The 2. 5-litre naturally aspirated engine, co-developed with Mountune, produces 343bhp, a record for a road-legal naturally aspirated car.

Innovative Materials, It is the first production car to use graphene-enhanced carbon fibre in every body panel, making it stronger and lighter than the standard model.

Lap Records: It has set production car lap records at tracks like the Red Bull Ring in Austria, where it was six seconds faster than a LaFerrari.

This is build number 40 so its the last car off the production line.

FULL SPECIFICATION INCLUDES :

Dimensions and weights

Overall Width -1836mm
Overall Length - 4007mm
Height - 1085 mm
Wheelbase - 2565mm
Ground clearance -100mm
Weight - 555 kg
Power to weight ratio - 613 BHP per tonne
Weight distribution - 49% front 51rear

Engine

Normally aspirated, 4 cylinder in line semi structurally mounted
Displacement -2488 CC
Configuration - In-line 4 cylinders
Number of valves - 16
Bore stroke - 89 x 100 mm
Maximum power - 340 BHP
Maximum torque - 330 NM
Construction - Forge connecting rods and forged Pistons
Lubrication System - Dry sump with internal scavenge pump
Camshafts - Performance inlet and exhaust camshaft and upgraded valve springs
Induction system - Gas flowed cylinder head with individual butterfly port throttles
Intake system – F3 style aero optimised carbon inlet remote filtration system and carbon airbox,
Exhaust - BAC developed 4 into 2 into 1 lightweight INCONEL centrally mounted exhaust system specialised control Systems Delta 880
Engine management - Master kill switch

Safety

6 stage traction control
FIA compliant plumbed in Lifeline Fire Extinguisher System
AP Racing (sintered high performance)
Clutch - Intelligent launch control

Fuel System

Custom alloy fabrication with internal baffles and collector system
Capacity -36 litres
Fuel pump - ATL in tank high pressure fuel pump two stage filtration
Filler - Lockable billet aluminium filler cap

Gearbox and Driveline

Super lightweight magnesium Hewland FTR, fully stressed with integral engine oil tank
Type - 6 speed sequential
Lubrication - Splash

Final drive 9: 31
1st = 12: 38
2nd= 14: 33
3rd = 15: 27
4th = 18: 25
5th = 24: 27
6th = 24: 24

Gear selection
Pneumatic semi automatic closed loop system operating via steering wheel mounted paddles shift tech valve block
Switchable auto upshift
GKN/ BAC developed low friction and uprated

Lubrication Fluids

Motul developed 15W50 fully synthetic engine oil
Motul developed 300 LS75W-90 gearbox oil
Motul developed RBF 600 brake and clutch single centralised reservoir
Motul developed in inugel optimal coolant

Steering and Suspension

Steering - BAC/ Titan developed high ratio rack 1. 7 turns lock to lock
Type front - Adjustable pushrod activated twin wishbone system with needle roller bearing mounted bell cranks rising rate optimised camber change and roles centre position full acumen geometry Shim adjustable camber
Type rear - Gearbox mounted adjustable pushrod activated twin wishbone system with needle roller bearing mounted bell cranks rising rate optimised camber change and roll centre position Shim adjustable camber
Wishbones - Tig welded Seamless CFS3 steel updated aero tube twin wishbone
Uprights - Ultralight billet aluminium uprights front and rear
Dampers - Two way adjustable Ohlin Dampers
Springs - Race spec Eibach 280LB front and 325LB rear rising rate jounce rubbers
Anti-roll bars - Front and rear torsion bar

Vehicle Construction

Body type - Graphene enhanced, super light carbon composite body panels 2x2 twill visible Matte carbon lower body panels
Safety cell - 2nd generation optimised chassis for increased interior space, Tig welded cold drawn seamless tube RACMSA and FIA compliant ROPS carbon fibre performance crash box
STFC developed untested low drag aero package
Aero - BACS developed cockpit aero screen

Brakes

Calipers - AP racing Formula Car Caliper - radial 4 Piston front and rear
Discs - AP racing 295mm Carbon vented discs cross drilled bullet machined mounting bells front and rear
parking brake electronic parking brake steering wheel operated
Pedal box - BAC designed developed adjustable billet floor mounted pedal box with ball bearing mounted billet pedals and integrated clutch rest
Brake bias - AP racing cockpit adjustable brake bias

Wheels and Tyres wheels

Front OZ racing stroke BACS developed HRT alloy 7. 5 J by 17 inch
Rear OZ racing bacs developed HRT alloy 8. 5 J by 17 inch

Interior

Seat - BAC developed fixed position carbon fibre seat
Trim - "Extreme" waterproof leather microcare MC waterproof "suede"
Steering wheel - BAC developed 290 mm diameter carbon fibre rim with billet aluminium housing GEMS LDS 4 colour display system
Illuminated switch gear 6 pin quick release boss
Seatbelts - Schroth 5/ 6 point harnesses FIA compliant

Features
Quick lift Jack
Remote battery charger socket
Aluminium towing eyes front and rear
Super B ultra lightweight lithium battery
Paint Protection Film on lower body and leading edges

Please call for more information on this incredible car.
